 Posted: Sun Apr 24, 2011 3:44 pm Post subject: "CLOSE THE BLAST DOOR"! UPGRADED SET 2/2012
|
 |
|
NEW ORLEANS (Dagobah Base & Bast Alpha Garrison)
Here's our own version of a blast door from the death star. The set is a great backdrop for photos or "Shoot the Trooper" Each flat measures 4x8 and is easily transported in the back of a pickup truck. There are a total of 6 sections to this set. The 1/4" luan ply was stapled (finishing nails) along with some wood glue. The lumber was connected together using sheetrock screws and wood glue. The Paint was Latex indoor.
The Light Panel Flats
The frame is 4'x8' using 1"x4" pine. The face is a sheet of 1/4" 4'x8' Luan Plywood. The plywwod is glued and air stapled to the frame. The cutouts were made using a router. As it stands now we are just usin painted white luan on the inside of the flat. We have fluorescent lights but we just ran out of time to install them.
The Outer Door
The frame was built using 1"x6" pine with 1/4" Luan ply. We added floor vents at the bottom. You can find these at Lowes. They are floor vents for RVs. The two 4'x8' doorway sections are screwed together, top and bottom.
Along the inner edge of the doorway 1/4" Luan was added and the holes were routed out.
Door Surface
The 2 4'x8' flats were built with 2"x2" pine frames, with 1/4" Luan. The two sections are screwed together and screwed to the back of the outer door frame. The two outer light panels are screwed to either side of the door. The back of the set is supported by two braces attched to the back of the set.
This shows the frame for the door flat.
Last edited by Waldo Kent (Jeff Kent) on Mon Feb 06, 2012 6:03 pm; edited 4 times in total |
|
| Back to top |
|
 |
GotWookiee (Matt Pfingsten)
Rebel Legion Reserve
Joined: 30 Mar 2001
Posts: 4319
Location: Nashville, TN, USA
Medals: 2 (View more...)
|
|
| Back to top |
|
|
Krash
Guest
|
| Posted: Mon Apr 25, 2011 4:23 am Post subject:
|
|
|
That's not bad... not bad at all!  |
|
| Back to top |
|
|
Obey Wann (William Blackburn)
Active Legion Member
Joined: 01 Jun 2002
Posts: 3632
Medals: 1 (View more...)
|
|
| Back to top |
|
|
Waldo Kent (Jeff Kent)
Joined: 01 Oct 2009
Posts: 98
Medals: None
|
| Posted: Thu Apr 28, 2011 4:09 am Post subject:
|
|
|
| GotWookiee wrote: | | Very cool. What base/garrison is this? |
So sorry, New Orleans, Dagobah Base & Bast Alpha Garrison. (Updated) |
|
| Back to top |
|
|
montee916 ()
Joined: 18 Jun 2009
Posts: 121
Medals: None
|
| Posted: Thu Apr 28, 2011 7:24 am Post subject:
|
|
|
Thats great stuff, nice job on the build!  |
|
| Back to top |
|
|
Waldo Kent (Jeff Kent)
Joined: 01 Oct 2009
Posts: 98
Medals: None
|
| Posted: Mon May 09, 2011 3:11 am Post subject:
|
|
|
| PICTURES AND NEW INFO ADDED |
|
| Back to top |
|
|
Charybdis (Al d L.)
Active Legion Member
Joined: 08 May 2006
Posts: 1747
Location: Palmetto state (South Carolina)
Medals: 1 (View more...)
|
| Posted: Mon May 09, 2011 9:41 pm Post subject:
|
|
|
That's awesome! You have to post some pics once you get the lights added to the side panels. Would look way cool with that!
_________________
RL member since 2006
Blue Ridge Base
KJO/Nexus Temple
Docking Bay 94/Mountain Mist Hangar Bay |
|
| Back to top |
|
|
Waldo Kent (Jeff Kent)
Joined: 01 Oct 2009
Posts: 98
Medals: None
|
| Posted: Mon Feb 06, 2012 4:01 am Post subject:
|
|
|
UPGRADED SET!!

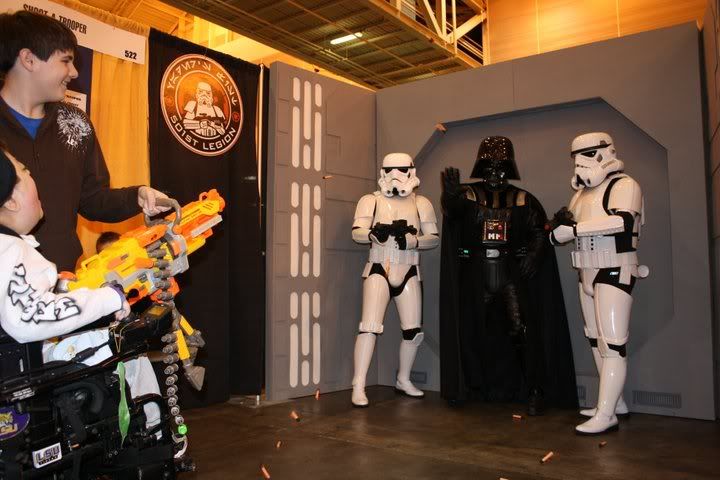

Well Shoot the Trooper was a big hit at this years New Orleans Comic Con. We received a lot of compliments on the set. This year we incresed the size of the set as well as the playing field.
